Feature of 625H2-A：

• 625H2-A (4- motor) is our company latest design and development of new style of electric nursing/medical bed.
• Streamline shape of four guardrails are convenient and easy to storage, not occupied the space.
• Human design guardrail has two sides of build-in control panel, inside is convenient for patient operation, outside by caregiver to avoid touching with patient and causing interactive infection.
• Guardrail with embedded angle indicator can monitor the angle of backrest and trendenlenburg.
• One piece molding head/foot boards can be installed and uninstalled in simple operation.
• Excellent design of actuator system with lowest noise and stable quality, approved by UL and CE safety standard！
• Four functions actuator system design which assists ICU ward care giver to upgrade work efficiency.
• Excellent central lockable and steering castors system design which assists care giver to move bed smoothly and easily.
• Serious international quality and safety standards, and includes a variety of safety design! Multiple nursing function to help nurses and caregivers to improve the quality of health care, providing patients with convenient, comfortable and safest care!

Specification of 625H2-A：

1. Bed overall size: L2150 x W990mm (±5%)(W1035mm including guardrails)
2. Bed height： 485mm ~755mm(±5%)
3. Back-rest lifting angle is 0~75° (±5%)
4. Knee-rest lifting angle is 0~35° (±5%)
5. Trendelenburg & Rev. Trendelenburg 0~12° (±5%)
6. Auto-Contour (Backrest and knee sections moving together).
7. 24V DC actuator system.
8. Voltage: 110V/ 60Hz or 220V/ 50Hz

Standard accessories of 625H2-A：

1. Four-piece guardrails can be dropped down under the bedside, for operating its control panel is easy and convenient.
2. Built-in angle display for backrest and trendelenburg/Rev.
3. One piece molding Head/Foot boards and ABS sleeping panels are washable and removable.
4. Multifunctional corner bumper with anti collision castor and IV pole socket, and switch on/off function for head/foot boards.
5. Integrated stamping frame and bed panel frame are steel made with powder coated, resistant to chipping and scratching.
6. 5” Anti-dust covering casters.

Optional accessories of 625H2-A：

1.

   Overbed table

2.

   Bakelite

3.

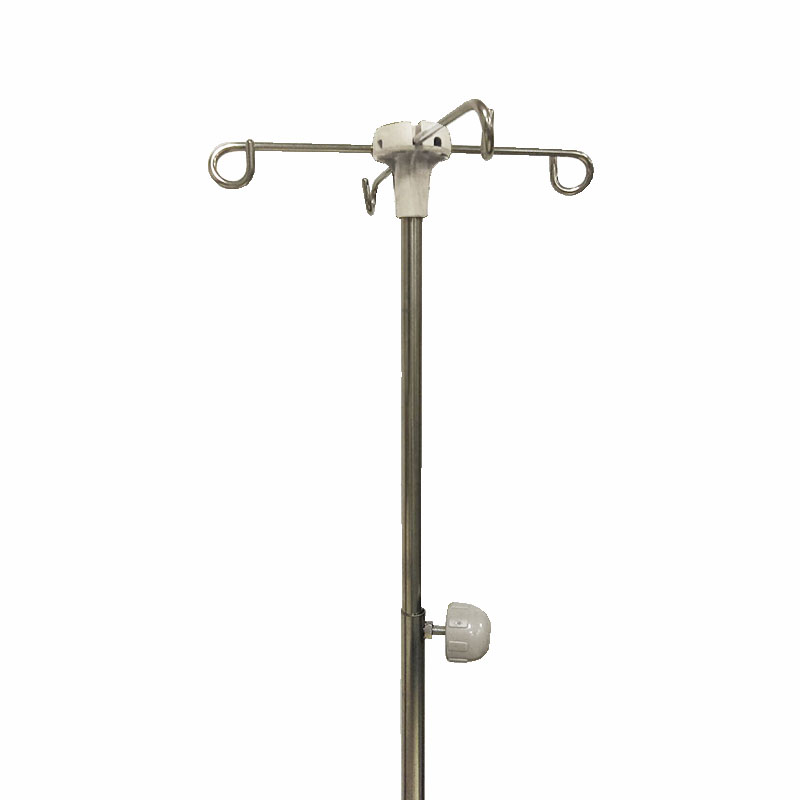

   IV pole with 4 hooK

4.

   Central locking system on castors with wheel cover

5.

   Instant CPR Release

6.

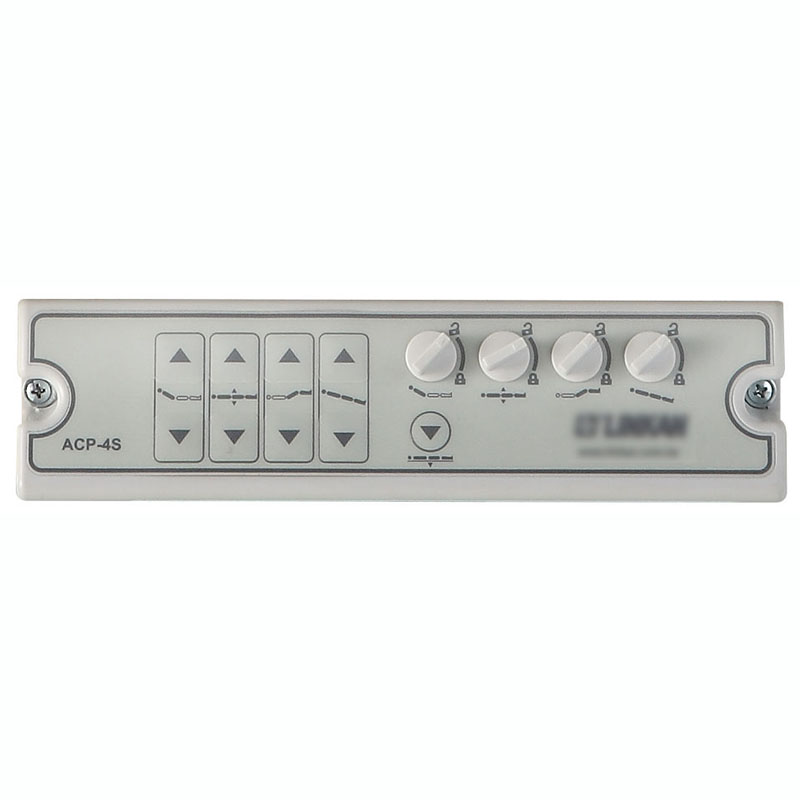

   Bed end attendant control panel(ACP)

7.

   Glove box

8.

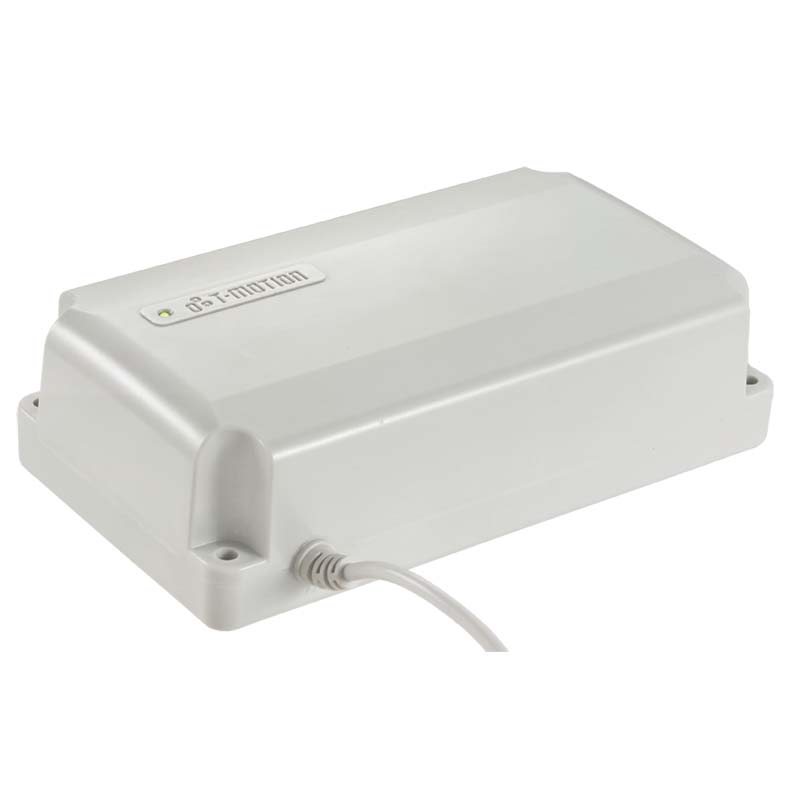

   Back-up battery

9.

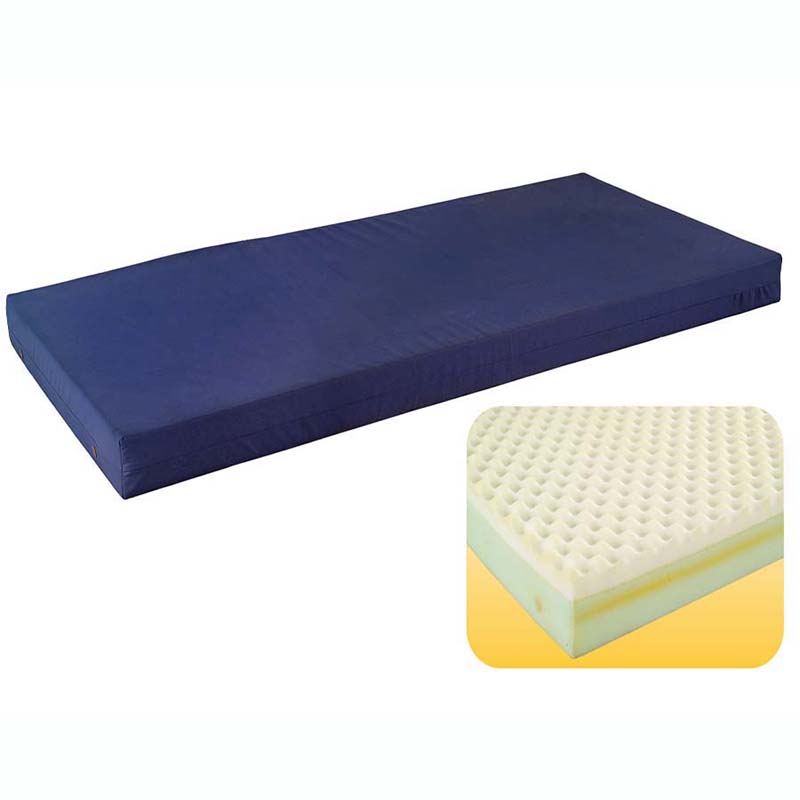

   Mattress

• If you need better function from electric operation of hospital & Nursing Medical-Care beds, you may refer to the model type E4P-HA4-Telectric operation of hospital & Nursing Medical-Care beds.
