E4P-HA4-T (4 Motors Electric Bed) Advance Features of E4P-HA4-T：
- Great design for full complete health-care.ISO 13485 international certification and Taiwan R.O.C. GMP good quality approved.
- Two Bedside safety Guard-Rails with 2 control panels design for easy operation.
- Low noise with high quality motor system could match medical devices requested. Great strength safety structure design for safety operation and protection.
- Attendant Control Panel (ACP) system of the foot-end board gives medical person or nursing staff to control all relative positioning functions directly of hospital medical-care beds and nursing health-care beds that give the patient’s suitable and comfortable position of adjustment.
- Stylish appearance & fashion function by ergonomics design.
Product of E4P-HA4-T：
- Easy to use and friendly control panel system for user or patient.
- Professional design for medical person or nursing staff to control the patient positioning functions directly.
- Full complete quality control system to offer excellent medical-care standards product series.
Standard accessories of E4P-HA4-T：
Low noise with high quality motor system could match medical devices requested. Safety structure design with IEC 60601-1. IEC 60601-1 is a series of technical standards for the safety and effectiveness of medical electrical equipment, published by the international electrotechnical commission. IEC 60601-1-2 electromagnetic compatibility - requirements and tests (04/93), Ed.2 (09/01), Am.1 (09/04), Ed. 2.1 (11/04).
Two bedside safety Guard-Rails with 2 control panels design for easy operation from user or patient and nursing staff or medical person.

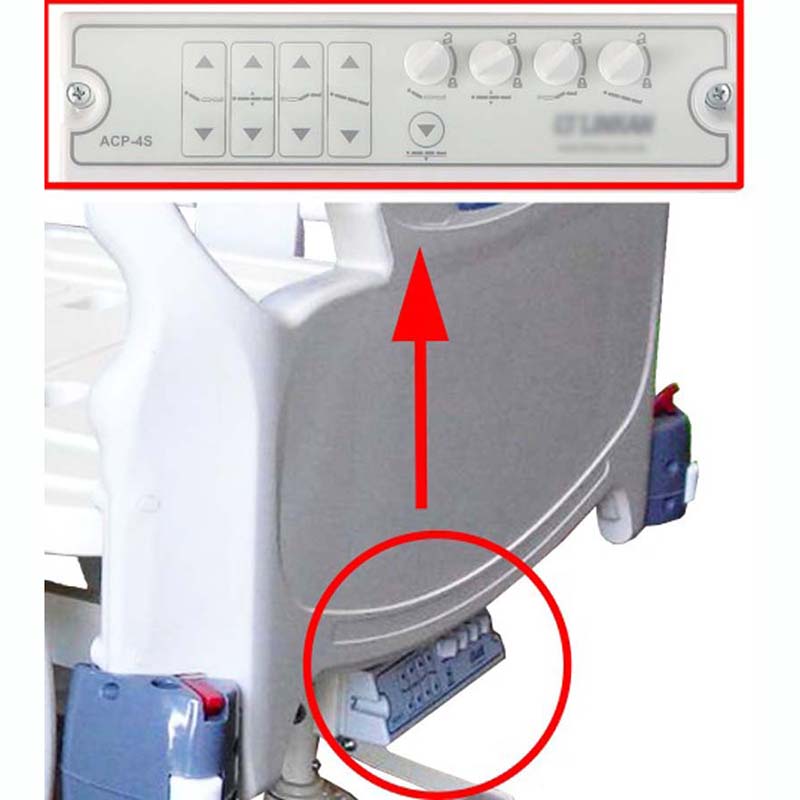

Professional Attendant Control Panel (ACP) system design for medical person or nursing staff to control the patient positioning functions directly with the back area inclining, leg area raising, and knee area bending, height range & tilt /inclination of hospital bed that give the patient’s suitable and comfortable position of adjustment. Attendant Control Panel (ACP) system on the foot-end board gives medical person or nursing staff to control all relative positioning functions directly of hospital medical-care beds and nursing health-care beds that give the patient’s suitable and comfortable position of adjustment.

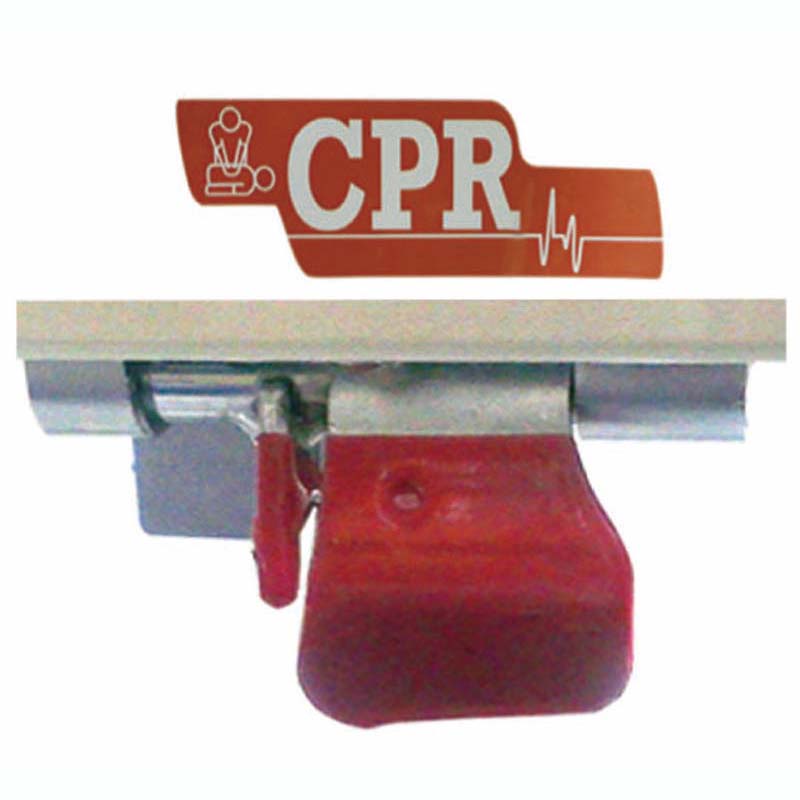

Cardiopulmonary Resuscitation) (CPR) function with quick control system, this could adjust the hospital medical-care bed to become horizontal state of patient and use for cardiopulmonary resuscitation (CPR) operation in the critical condition.
Central control brake system of foot-plate. Step foot-plate one time could lock 4 caster brake wheels.
Built-in digital angle display for backrest tilt/ inclination angle of hospital medical-care bed.
Bedside safety Guard-Rails could pull up & pull down and folding packing under the bedside of hospital medical-care beds.
A) One-piece molded 4 sections ventilator & washable ABS platform is easy to be cleaned that decreases bacterium, hair, dust and dirt staying on hospital medical-care beds.
B) Restraint & constraint locker hole design for hand, belly, knee and foot area.
C) Mattress block design to prevent the mattress from sliding.
A)Head/foot boards: The 45° inward curved shape offers protection to the patient physically and psychologically.
A) Curved ABS corner bumper design for collision avoidance or reduce unexpected collision when patient transportation.
B) Bumper guider-wheel of ABS corner bumper structure brings automation correction of direction when the hospital medical-care bed is moving or transportation.
C) Curved ABS corner bumper multi-design with I.V pole socket with 4 curved ABS corner bumpers.
D) Quick disassembly & assembly design by switch of head board & foot-end boards as you wish. Suitable use for narrow space.
Joint of home care & household Nursing Medical-Care beds:
Steel made joint with plastic cover structure with great strength that could support the operation of home care & household Nursing Medical-Care beds, with its safety & attractive appearance.
Anti-Dust cover of four 5” caster brake wheels of hospital medical-care beds, it could prevent four 5” caster brake wheels from hair & dust and dirt. This is easy for patient transportation.
Urine bag hanging: Urine bag hanging under medical-care bed could hold multi-drainage bag from fluid and blood or urine.
Specification of E4P-HA4-T：

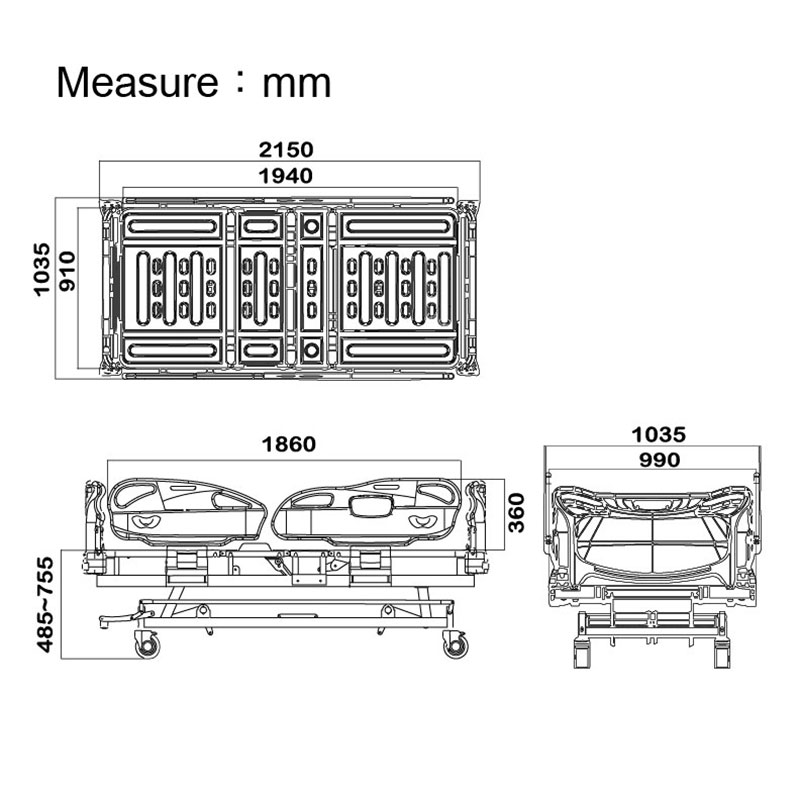

| Dimension |
|
| Main Function |
|
| Voltage Output |
|
| Component raw material |
|
| Safe working load | 250kg(551 lbs) |
| Net Weight/Gross Weight | 111kg(244 lbs )/115kg(253 lbs) |
| ※The tolerance of above value is plus or minus 5% | |
Optional accessories of E4P-HA4-T：
Multi-function overbed table. could Adjust the height of table as you wish for dining, writing, reading and so on.
Transparent material, reverse side with X-ray film holder.
Height adjustable 2 joint telescoping IV Pole, with 4 hooks for multi-nursing medical-care & home health-care protection.
Small box could keep personal items from the side guardrails of hospital medical-care bed. (The maximum is 4 sets of each hospital medical-care bed)
Rechargeable backup battery: Use for power failure or patient transportation.
M shape hanger could hold urine bag & drainage bag.
Waterproof bed mattress: Waterproof cloth cover with high density wave foam.
