Feature of 530H1：

• 530H1 manual bed is designed for long-term care patient in hospital or nursing home.
• Bed end concealed manual cranks can be used in hi/lo, back rest and knee rest adjustment at any position.
• Excellent bed low height is designed for patient lying and leaving the bed.
• Integrated stamp bed panels are made by galvanized steel sheet and epoxy powder coating, easy cleaning and maintaining.

Specification of 530H1：

1. Bed overall size:                  L2140xW1010mm (±5%)
2. Bed height：410~750mm (±5%)
3. Back-rest lifting angle is 0~75° (±5%)
4. Knee-rest lifting angle is 0~35° (±5%)

Standard accessories of 530H1：

1. Aluminum collapsible guard rails.
2. Integrated stamping Head/Foot boards  are washable and removable.
3. Multifunctional corner bumper with anti collision castor and IV pole socket, and switch on/off function for head/foot boards.
4. Integrated stamping frame is steel made with epoxy polyester powder coated & baked finish, resistant to chipping and scratching.
5. Three concealed type cranking handles on bed-end.
6. High quality 5”(125mm) braking casters.

Optional accessories of 530H1：

1.

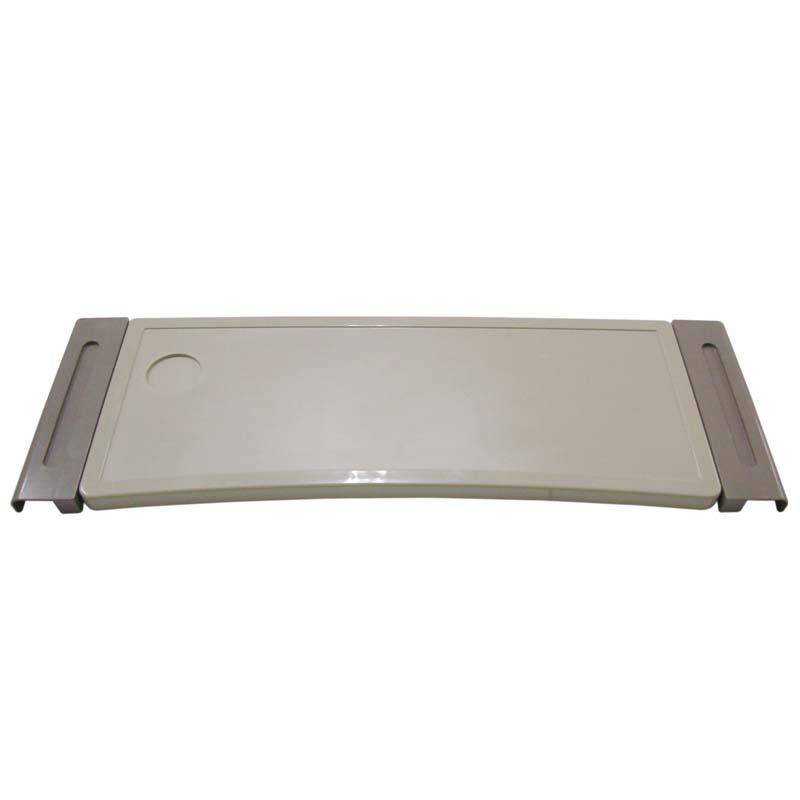

   Telescopic cross over bed dining plate.

2.

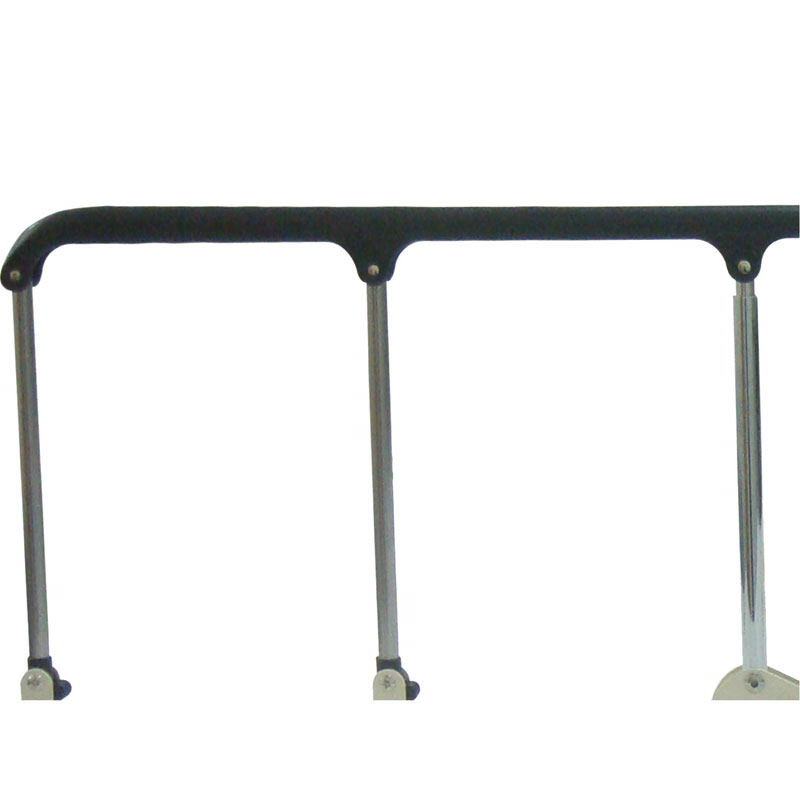

   ABS tubing collapsible guard rails.

3.


   Telescopic stainless steel IV Drip Pole with 4 hooks.

4.


   5” Anti-dust covering casters.

5.


   Central locking system on castors with wheel cover.

6.

   Gas spring.

7.


   Mattress.

• If you need the same function & type from electric operation of hospital & Nursing Medical-Care beds, you may refer to the model type 535H1 electric operation of hospital & Nursing Medical-Care beds.
