Advance Features of EAL-HA3 ：

• 3 electric operation systems from ergonomics hospital & Nursing Medical-Care beds Series, you can adjust to the most comfortable angle.
• Low noise with high quality motor system could match medical devices requested.
• High strength safety structure design for safety operation and protection.
• Aluminum alloy bedside safety Guard-Rails give user or patient safety protection and comfort electric operation of hospital & Nursing Medical-Care beds.
• Stylish appearance & fashion function by ergonomics design.





Product of EAL-HA3 ：

Considering most people & patient’s demand, CKI professional team (CHEN KUANG Industries Company LTD) has designed EAL-HA3 model type from electric operation of hospital & Nursing Medical-Care beds for every user. Combine with stylish appearance & fashion & elegance head board and foot-end board. EAL-HA3 model type could offer you the comfort nursing care & health protection. Mass-production & procedure through top international quality control system by safety standard operation procedure to combine good spare parts & components.

EAL-HA3 is your great choice model type of electric operation of Hospital & Nursing Medical-Care beds.



Standard accessories of EAL-HA3：

1.

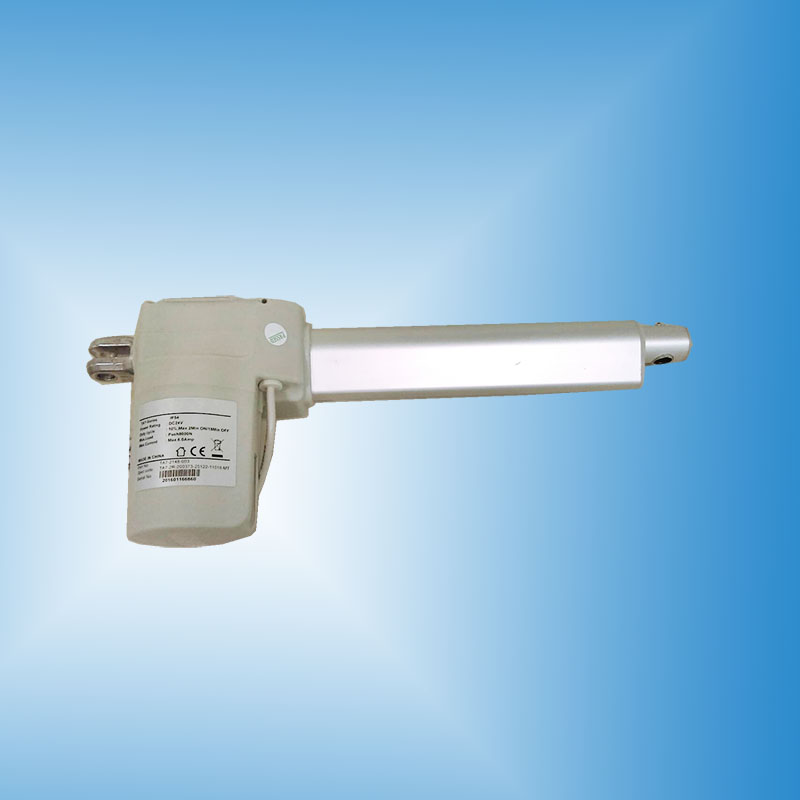

   Low noise with high quality motor system could match medical devices requested. Safety structure design with IEC 60601-1. IEC 60601-1 is a series of technical standards for the safety and effectiveness of medical electrical equipment, published by the international electrotechnical commission. IEC 60601-1-2 electromagnetic compatibility - requirements and tests (04/93), Ed.2 (09/01), Am.1 (09/04), Ed. 2.1 (11/04).

2.

   A)Head/foot boards: The 45° inward curved shape offers protection to the patient physically and psychologically.

3.

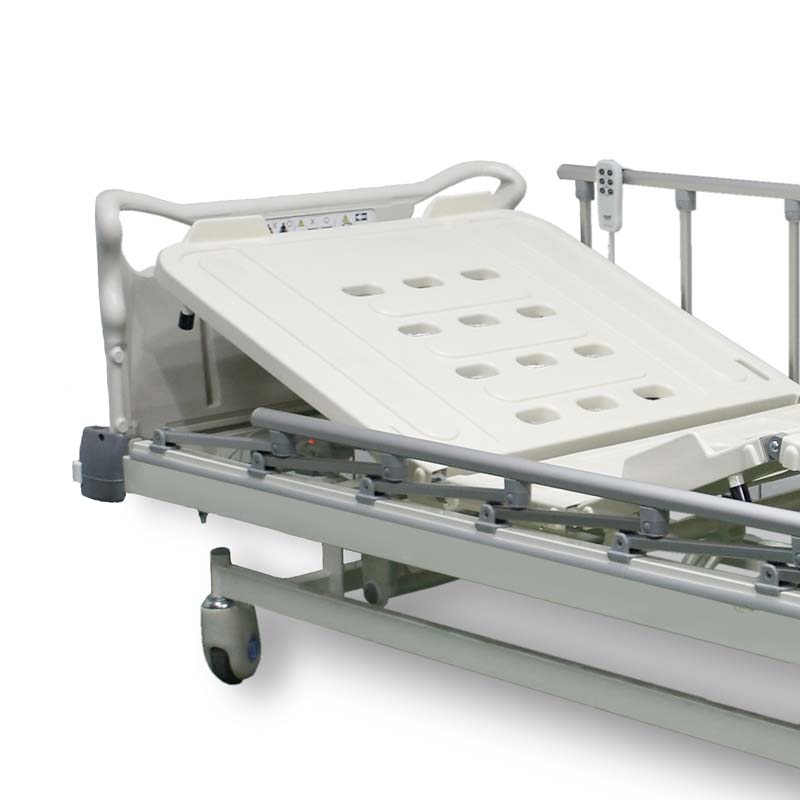

   A) One­­-piece molded 4 sections ventilator & washable ABS platform is easy to be cleaned that decreases bacterium, hair, dust and dirt staying on hospital medical-care beds.
   B) Restraint & constraint locker hole design for hand, belly, knee and foot area.
   C) Mattress block design to prevent the mattress from sliding.

4.

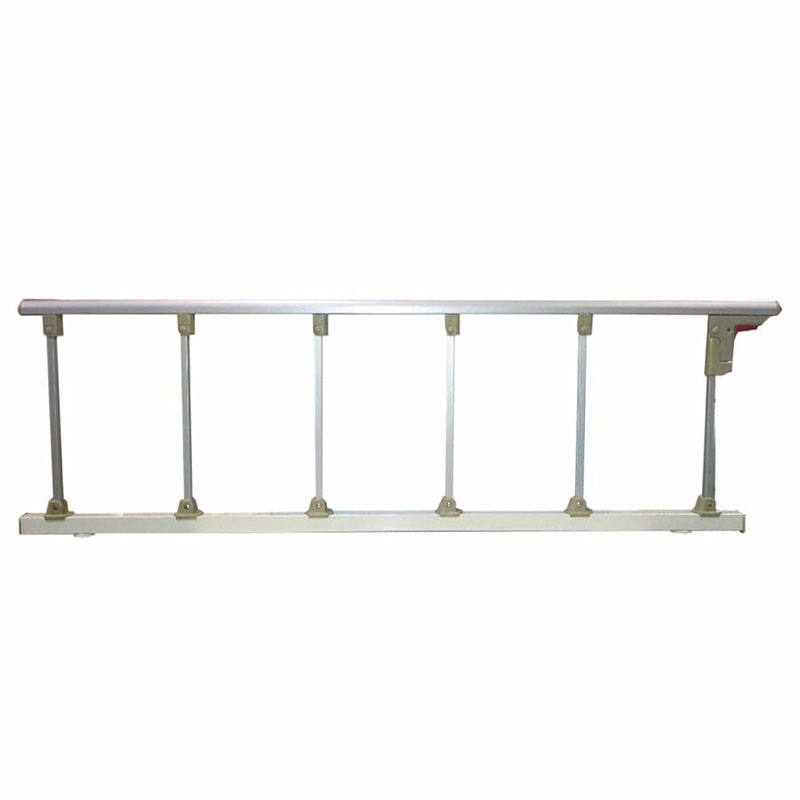

   Aluminum alloy bedside safety Guard-Rails give user or patient safety protection, switch handle is designed by saving time & strength that could easily operate from hospital & Nursing Medical-Care bed.

5.


   A) Curved ABS corner bumper design for collision avoidance or reduce unexpected collision when patient transportation.
   B) Bumper guider-wheel of ABS corner bumper structure brings automation correction of direction when the hospital medical-care bed is moving or transportation.
   C) Curved ABS corner bumper multi-design with I.V pole socket with 4 curved ABS corner bumpers.
   D) Quick disassembly & assembly design by switch of head board & foot-end boards as you wish. Suitable use for narrow space.

6.

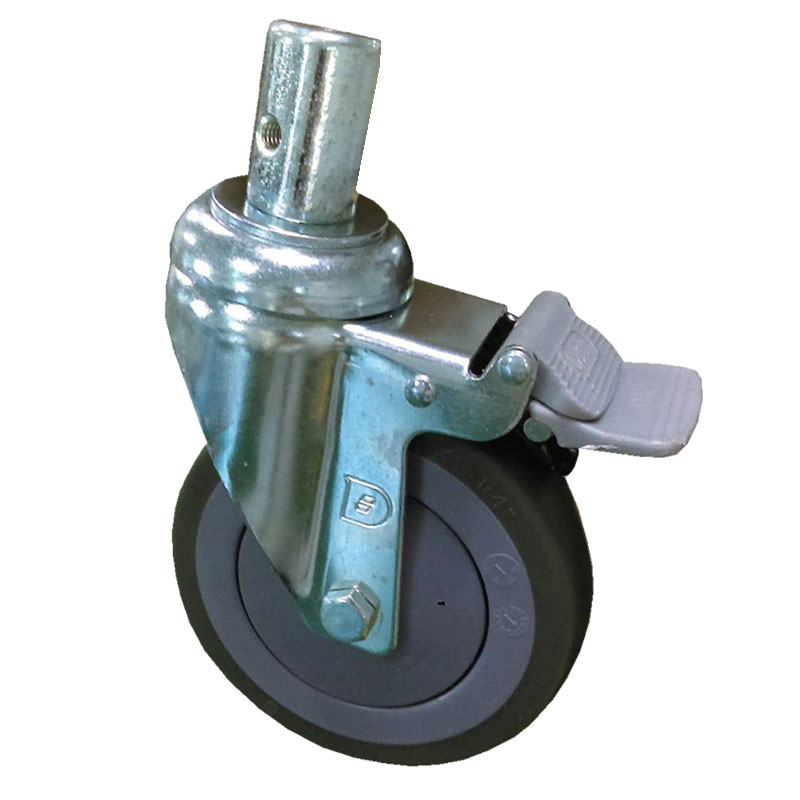

   High quality design of 5” caster brake wheels of hospital medical-care beds are scratch resistant with long durable life.

7.

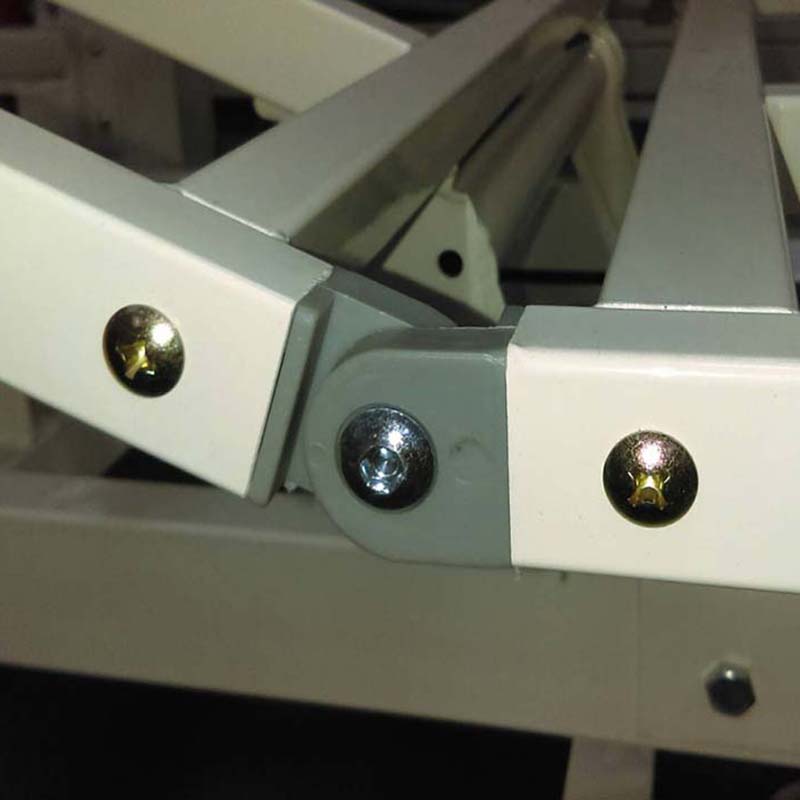

   Joint of home care & household Nursing Medical-Care beds:
   Steel made joint with plastic cover structure with great strength that could support the operation of home care & household Nursing Medical-Care beds, with its safety & attractive appearance.

8.

   Electric adjustable backrest angle, leg rest angle & height range of hospital & Nursing Medical-Care beds by three functions handset.

9.

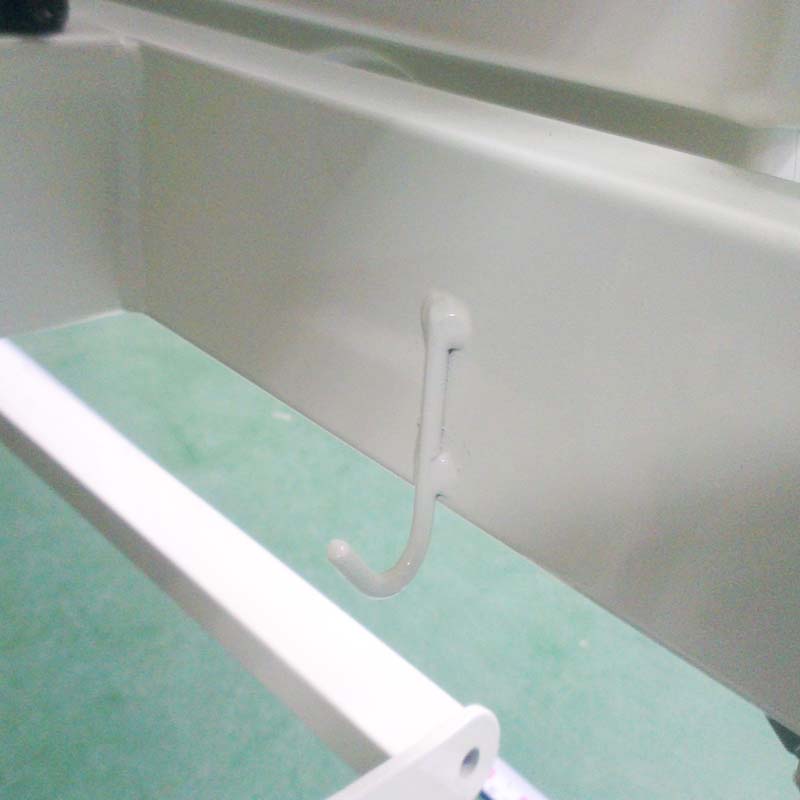

   Urine bag hanging: Urine bag hanging under medical-care bed could hold multi-drainage bag from fluid and blood or urine.



Specification of EAL-HA3：

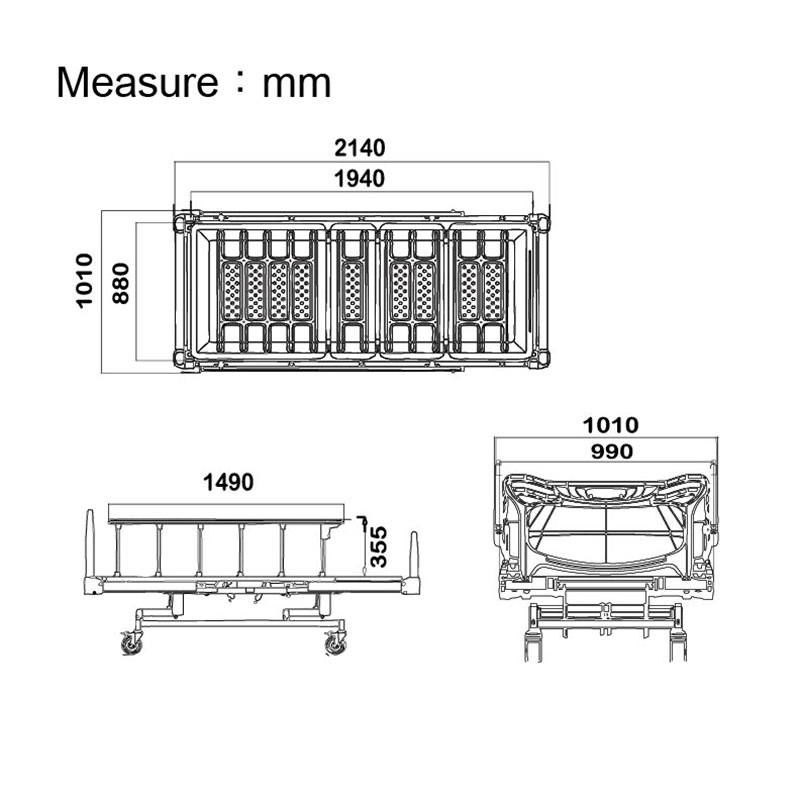

Dimension	Overall Bed Size：L214 cm x W101 cm x H41 cm ~75cm  (L84.2" x W39.7" x H16.1"~29.5") Bed Platform Size：L194 cm x W88cm  (L76.3" × W34.6") Optional - Mattress Size：L192 cm x W87 cm xH10cm  (L75.6”x W34.2”x H3.97”) Packing Size： BedBody/L217 cm x W103 cm x H48cm ( L85.4" x W40.5" x 18.9") Head Board & Foot-End Board /L 96 cm x W 51.5 cm x T9cm (L 37.8" x W 20.2" x T 3.54") Height from bed platform to top of side guardrails：36cm (14.1") Maximum Mattress thickness：13cm (5.1")
Main Function	Bed Hi-Lo adjustment：34cm (13.3") Back-rest lifting：0~75° Knee-rest lifting：0~35°
Voltage Output	24Voltage Direct Current Motor Waterproof grade：IP54 Voltage output：220V/50Hz or 110V/60Hz
Component raw material	Bed Frame Structure： Steel made & Powder Coated with abrasion resistance, scratch resistance & rust resistance. Head Board & Foot-End Board and Bedside safety Guard-Rails: Aluminum alloy material. Bed Platform: ABS material. Curved ABS corner bumper: Curved ABS corner bumper with ABS Switch, bumper guider-wheel by TPE.
Safe working load	200kg(441 lbs)
Net Weight/Gross Weight	93 kg(205 lbs) /97 kg(213 lbs)
※The tolerance of above value is plus or minus 5%



Optional accessories of EAL-HA3 ：

1.

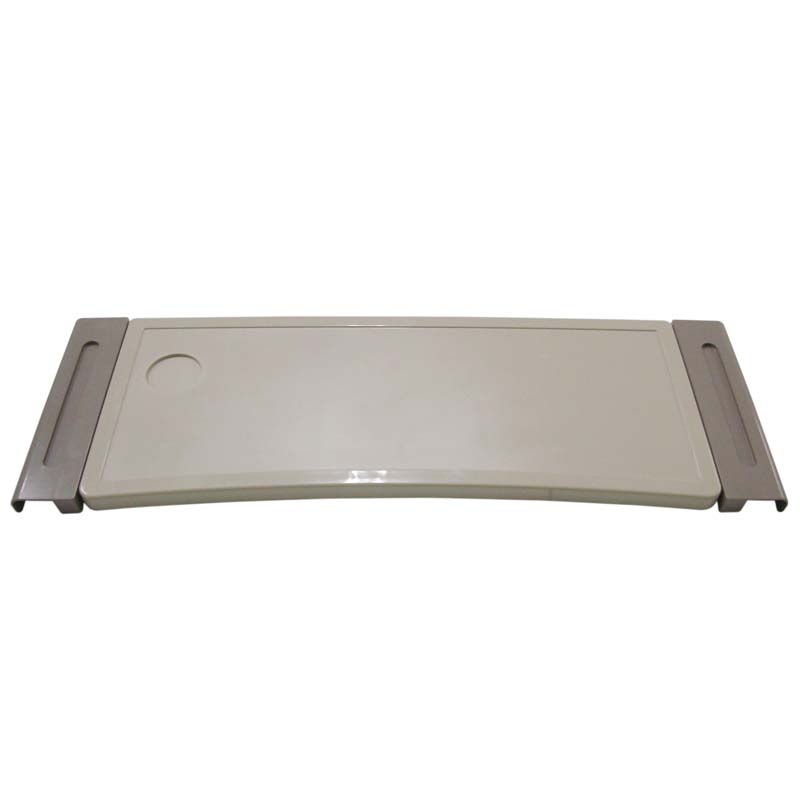

   1. One-piece molded ABS Adjustment table board of hospital & Nursing Medical-Care beds.

2.

   2. Central control brake system of foot-plate, step foot-plate one time could lock 4 caster brake wheels.

3.

   3. ABS bedside safety Guard-Rails, easy operation and protection.

4.

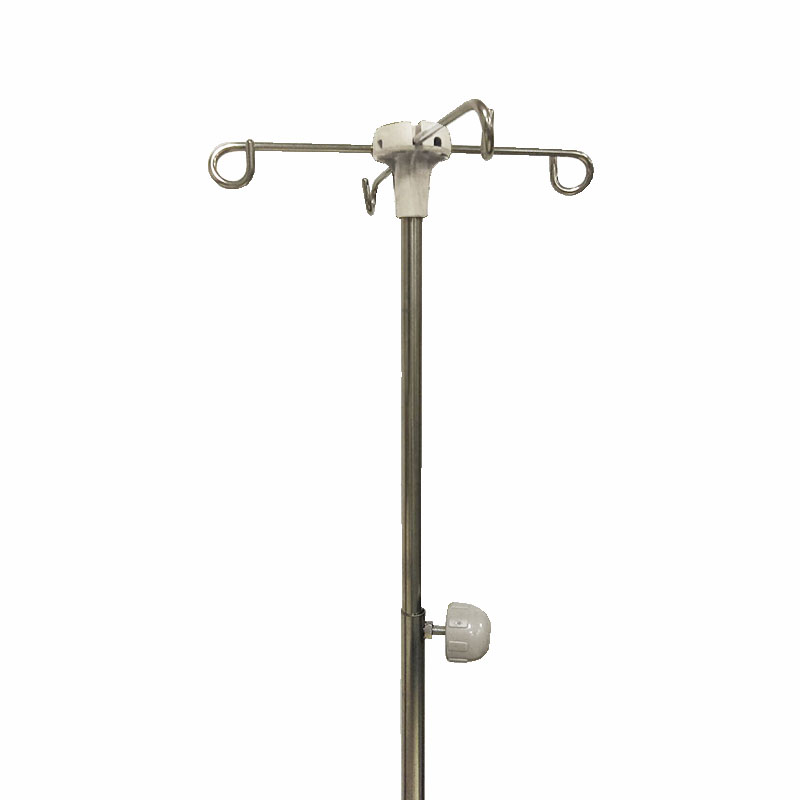

   4. Height adjustable 2 joint telescoping IV Pole, with 4 hooks for multi-nursing medical-care & home health-care protection.

5.

   5. Anti-Dust cover of four 5” caster brake wheels of hospital medical-care beds, it could prevent four 5” caster brake wheels from hair & dust and dirt. This is easy for Patient transportation.

6.


   6. Rechargeable backup battery: Use for power failure or patient transportation.

7.

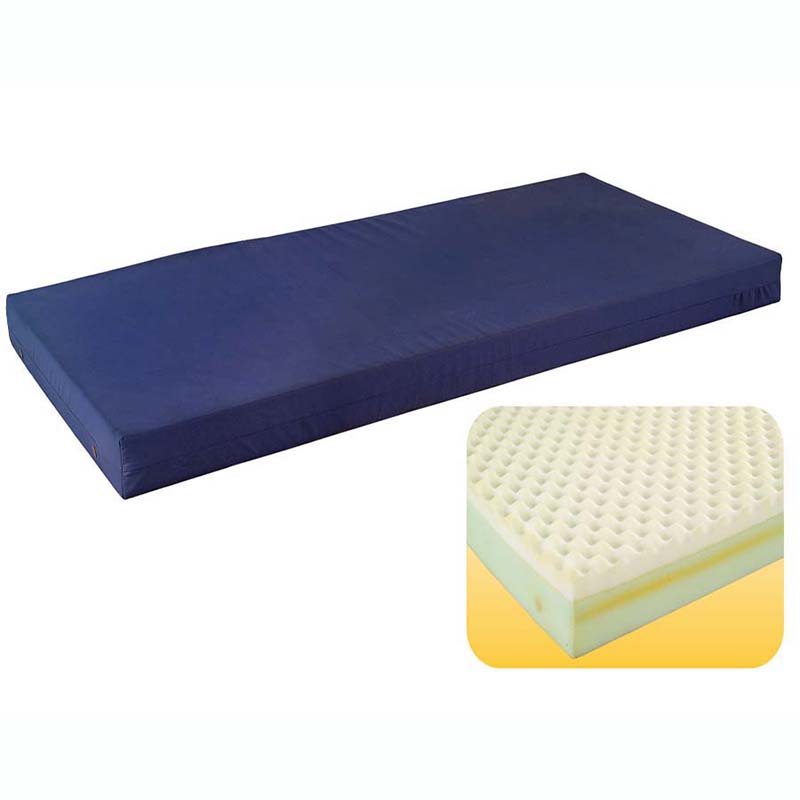

   Waterproof bed mattress: Waterproof cloth cover with high density wave foam.



• If you need better function from electric operation of hospital & Nursing Medical-Care beds, you may refer to the model type E4P-HA3 electric operation of hospital & Nursing Medical-Care beds.
